MeasureMate

MeasureMate is a collection of tools designed to streamline and speed-up your modeling, which includes:

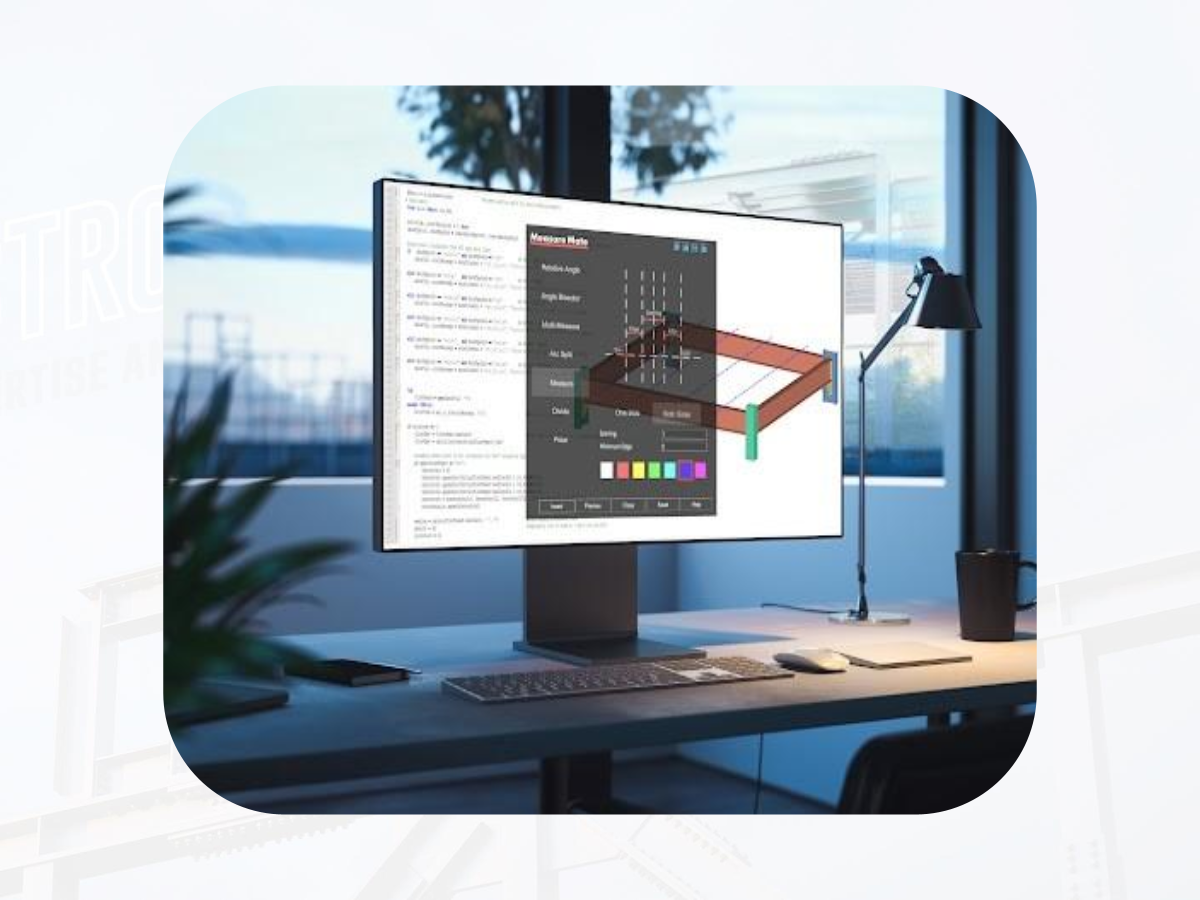

1. MeasureMate is an application designed to streamline and speed-up the build of various construction lines configurations.

   The available commands include: Divide, Measure, Multi-Measure, Arc Split, Angle Bisector, Relative Angle, Polar.

   It features an ergonomic design, with controls grouped for easy access and minimised user input. The results can be pre-visualised before being applied in the model. The interface can be kept open permanently, either on the same screen with SDS2 or on a secondary one, so the user can access the commands by a single click.

2. WalkingPlatform is a custom member designed to ease the modeling of landing type platforms (like the landing type platforms that connect two successive flights of stairs).

   Its top can be modeled with various infill configurations like: plates, deck or grating.

3. CurvedPourStop is a custom member designed to ease modeling of rolled plates assembly for "L" shaped curved surfaces.



DOCUMENTATION

Owner: CanamⓇ Group Inc.

Support: Contact Canam Group Inc. SUPPORT

Help Documentation:

• MeasureMate

DOWNLOADS

This plugin was developed externally by Canam Group Inc. To download this plugin, visit Canam Group Inc. Website here
